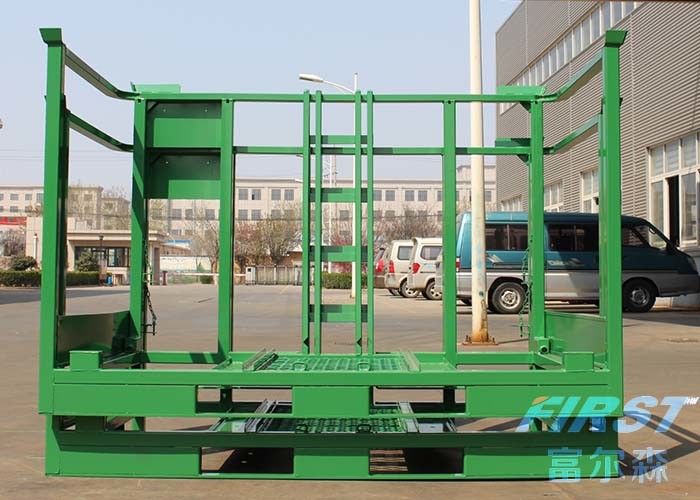

Steel Box Pallet&Storage Racks are a special tool for glass transportation. The storage racks can be stacked up when not in use.We ensure a close working relationship that maximises production and logistics operation. We form a close partnership, which enables the optimisation of logistical efficiencies as well as ensuring an ergonomic design for your stillage.
Specifications of steel stacking racking
| Exterior Dimension | Interior Dimension |
Loading capacity |
Stackability |
Total container |
| LxWxH(mm) | LxWxH(mm) | kg | ||
| 1300x1200x1200 | 1200x1150x1000 | 1000 | 4 | 1x40'HQ |
| 1300x1200x1400 | 1200x1150x1200 | 1000 | 4 | |
| 1400x1200x1200 | 1300x1150x1000 | 1000 | 4 | 1x40'HQ |
| 1400x1200x1400 | 1300x1150x1200 | 1000 | 4 | |
| 1500x1200x1200 | 1400x1150x1000 | 1000 | 4 | 1x40'HQ |
| 1500x1200x1400 | 1400x1150x1200 | 1000 | 4 | |
| 1600x1200x1200 | 1500x1150x1000 | 1000 | 4 | 1x40'HQ |
| 1600x1200x1400 | 1500x1150x1200 | 1000 | 4 | |
| Mild steel Q235 | ||||
| Powder coating | ||||
| Detachable/undetachable | ||||
| Warehouse, logistic, recycling, etc. | ||||
| Costomized or OEM support | ||||
|

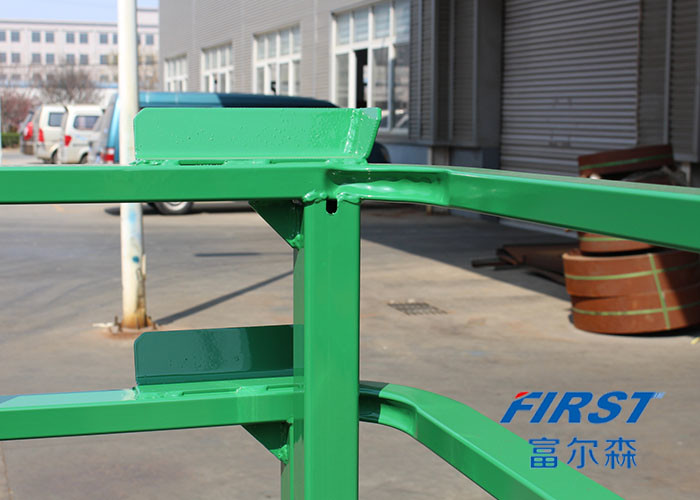

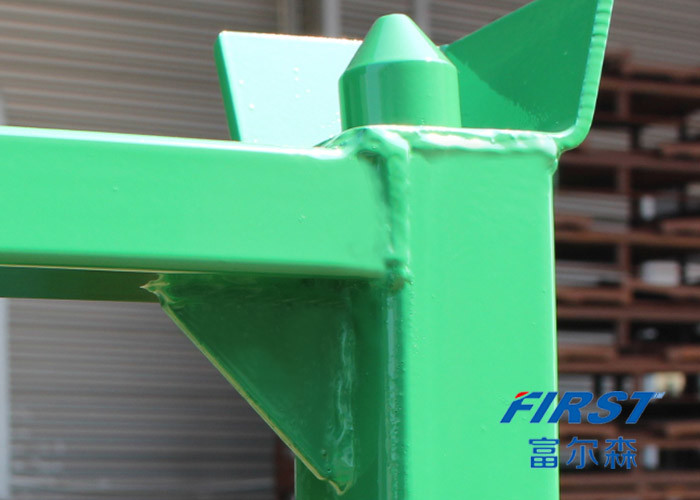

1. Safe, secure and simple stacking 2. Increased handling and storage flexibility 3. By positioning the bottom angles of the top rack over the stacking tubes of the unit below, the Nestainer rack can be guided into it’s stacked position for full column-to-column loading |
||||
