Square tube Frame stillage used in motor vehicle workshop

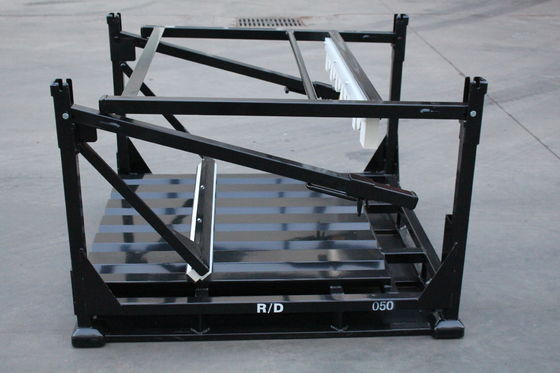

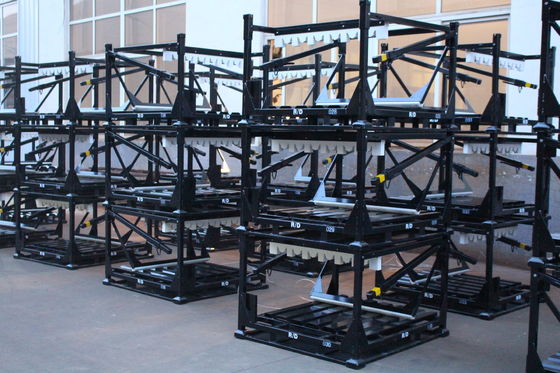

Frame stillages are often used to store and transport motor vehicle door. We can design frames to suit specific requirements . The frame stillage can be fixed goods by both of side with cushion. It can be folded down half door when stacked each other. The bottom of the stillage used corrugated sheet to keep door moving when transportation.Fork guides enable forklift trucks or any powered lifting equipment to pick up the stillage with ease. Above is one of our stillages with 4 way.
Specification of gavanized stacking pallet racks
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 256 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 1020 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
| Key features | 1.Strong tubular steel - stack up to 4 high 2.Removable arms - fully collapsible, save space, easy storage when not in use 3.Cup feet - easy stacking 4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use |
||||
