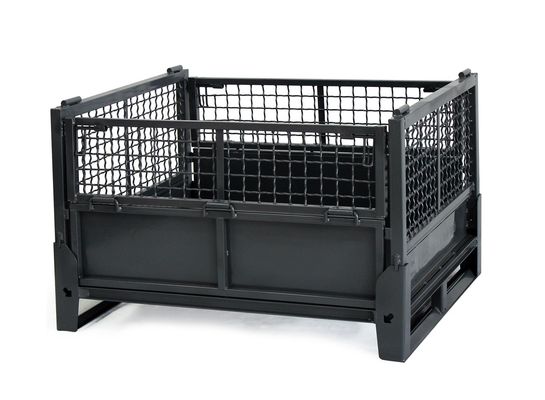

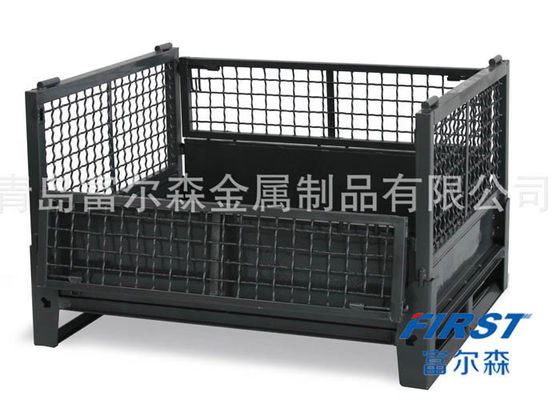

Collapsible Cage used in packing semi-produts or finished products in warehouse or workshop
Collapsible Double Storage Cages are is ideal for heavy goods or larger cartons. Storage cages can be stacked up & still have access to the goods though the half drop-down doors. Saves having to use pallet racking
Many years of being in the transport and storage business has given us plenty of hands-on experience which we are now putting into the development of our products. This is demonstrated by our range of cages designed specifically for the transporting of goods by truck.
Specially designed lockable cages with lockable doors are ideal for trucking companies as they can be used as a base for stacking long and difficult freight on top.
Most cages are stackable and collapsible so that you don't need pallet racking. To save space, cages can also be stacked away if not being used.
You can also contact us for cage steel, cage truck, cage metal, cage transport and cage storage.Regular Size
| Size | Folded | Self-weight | Load Capacity | Stackability | Load Quantity | |
| External size(MM) | Internal size(MM) | (MM) | (kg)±2% | (kg) | layers | 40 HC |
| 1600*1150*1075 | 1525*1070*830 | 1600*1150*360 | 125 | 1500 | 3 | 112 |
| 1150*800*730 | 1080*720*500 | 1150*800*360 | 70 | 1000 | 4 | 224 |
| 1370*900*920 | 1300*820*680 | 1370*900*360 | 107 | 1000 | 4 | 168 |
| 1950*1150*1300 | 1875*1070*1030 | 1950*1150*360 | 190 | 1500 | 4 | 80 |
| 1200*1000*930 | 1120*920*700 | 1200*1000*370 | 110 | 1200 | 3 | 168 |
| 1600*1200*930 | 1525*1120*710 | 1600*1200*370 | 156 | 1500 | 3 | 72 |
| 1412*1140*1200 | 1315*1095*1035 | 1412*1140*330 | 110 | 1000 | 3 | 128 |
| 1170*1000*760 | 1100*910*580 | 1170*1000*320 | 77 | 1000 | 4 | 168 |
1. Cap channel over wire perimeter for added protection
2. Square-Stack legs for secure stacking
3. Tags, labels, card holders
4. Casters, fork sleeves, runner bars
5. Dividers or security lids
6. Custom colors
7. Custom feet available.
8. Custom wire mesh size
