Cages for transport and storage

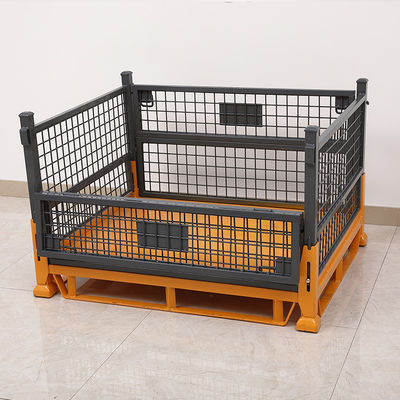

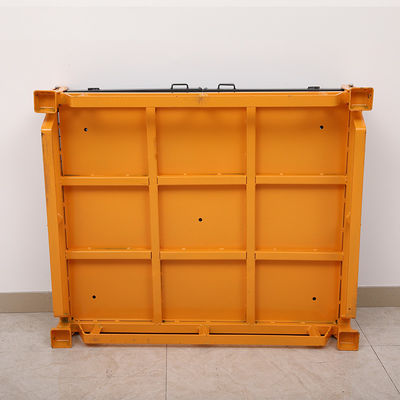

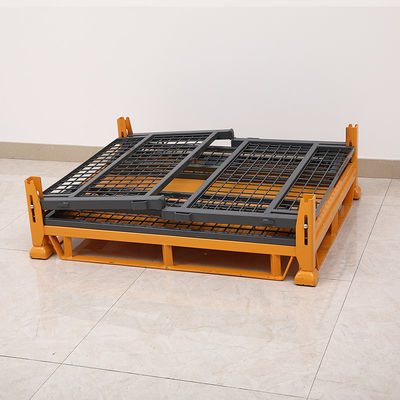

Wire mesh container is steel cage mainly for storage but can also be used for transport. Steel cages can be stacked up & collapsed down when not in use to save space. This cage is our best seller.Wire mesh container can be used in most of industries,it is easy to operate in warehouse and workshop.This kind of mesh cage has standard size,which can be supplied to many different customer.
Optional Dimension
| Length(mm) | Width(mm) | Height (mm) | Capacity (kg) | Volume (m³) | Wire dia.(mm) | Leg height(mm) | Mesh grid (mm) |
| 800 | 600 | 650 | 700 | 0.22 | 6 | 100 | 50*50 |
| 800 | 600 | 650 | 500 | 0.22 | 6 | 100 | 50*100 |
| 1000 | 800 | 850 | 1200 | 0.51 | 6 | 100 | 50*50 |
| 1000 | 800 | 850 | 800 | 0.51 | 6 | 100 | 50*100 |
| 1200 | 1000 | 900 | 1500 | 0.84 | 6 | 100 | 50*50 |
| 1200 | 1000 | 900 | 800 | 0.84 | 6 | 100 | 50*100 |
| 800 | 600 | 650 | 800 | 0.22 | 6.4 | 100 | 50*50 |
| 800 | 600 | 650 | 600 | 0.22 | 6.4 | 100 | 50*100 |
| 1000 | 800 | 850 | 1500 | 0.51 | 6.4 | 100 | 50*50 |
| 1000 | 800 | 850 | 1000 | 0.51 | 6.4 | 100 | 50*100 |
| 1200 | 1000 | 900 | 2000 | 0.84 | 6.4 | 100 | 50*50 |
| 1200 | 1000 | 900 | 1000 | 0.84 | 6.4 | 100 | 50*100 |
Any cage we made you can add:
Stack tool:
Depended on your using requirement,we can add stack guides on both sides.
Traction:
Depended on operation requirement, we can add traction to make moving easily.
Dependant on your specifications and weight requirements, we can add full or partial fork lift guides. We recommend that on larger trolleys you use full fork lift guides (as shown in the pictures above).
If you wish to be able to lift the trolleys using cranes then we recommend having lifting eyes. We can provide load testing to ensure weight requirements are adhered too.
We ensure that all castors used are load rated to suit your requirements. We can supply various options including swivel, fixed, braked, directional lock as well as numerous options for wheel and tire material.
All of our products are available in any colour you may require, be that a standard RAL ,Panton or mixed to your specifications. We also offer our products galvanised or zinc coated.
With an experienced design team we can ensure that all multi orders or requests include 3D drawings using Solid Works software.
