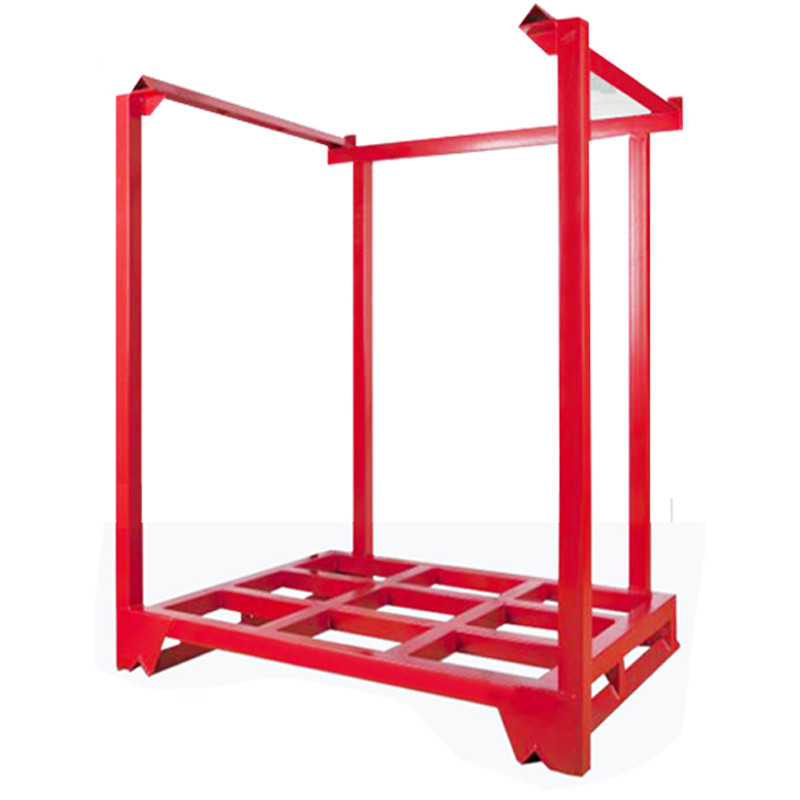

Stackable Frame used in cold-storing or warehouse
Heavy duty Powered &Galvanised Stillage is suitable for outdoor use. The stillages can be stacked up for storage when not being used. Stackable Frame is named moving shelf&frame. Stillages can customized according to different demands.Storage Racks are a large platform for storage of bulky or longer items.
Specifications of tire racking
| Model No. | Exterior Dimension |
Tire capacity |
Loading Capacity |
Max. Stacked |
Max. Stacked |
Load in 1x40HQ |
| LxWxH | pcs | kg | open | closed | sets | |
|
96"x66"x51" (2438x1676x1295 mm) |
35 to 65 | 1100 kg | 4 | 20 | 70 | |
| Material | Mild steel Q235 | |||||
| Application area | Warehouse, logistics, tyre, auto industry | |||||
| Finish | Colorful Powder coating | |||||
| Remark | Costomized or OEM support | |||||
| Benifits & structure | 1. Forklift guide --easy to stack and move around with the fork truck --rearrange floor space quickly and simply than pallet racking 2. Fully collapsible --reduce shipping costs, save space during slower periods --regain 80% storage space when folded 3.Optional bottom wire mesh & forklift guide |
|||||
