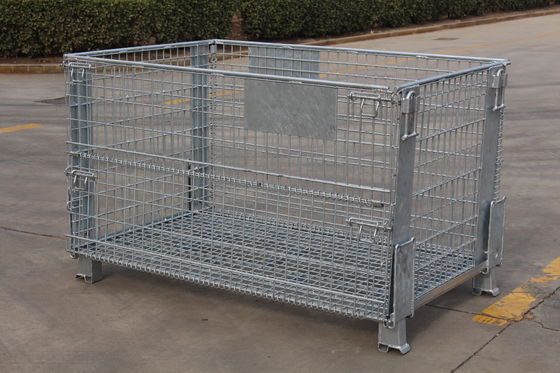

Steel Box Pallet used in warehouse for loading metal parts or plastic parts
Regular Sizes
| Regular models of wire container | ||||||
| Specification | Wire diameter | Mesh gauge | Load capacity | Self-weight | Feet height | |
| External size (L*W*H)(mm) | Internal size (L*W*H)(mm) | (mm) | (mm) | (kg) | (kg)±2% | (mm) |
| 800*600*640 | 750*550*500 | 5.8 | 50*50 | 800 | 29 | 100 |
| 5.6 | 50*50 | 700 | 27.8 | |||
| 5.3 | 50*50 | 600 | 23 | |||
| 4.8 | 50*50 | 400 | 20.6 | |||
| 5.8 | 50*100 | 600 | 25 | |||
| 6.3 | 50*50 | 1000 | 32 | |||
| 1000*800*840 | 950*750*700 | 5.8 | 50*50 | 1200 | 44.8 | 100 |
| 5.6 | 50*50 | 1000 | 42.8 | |||
| 5.3 | 50*50 | 800 | 35.2 | |||
| 4.8 | 50*50 | 600 | 30.8 | |||
| 5.8 | 50*100 | 1000 | 39 | |||
| 6.3 | 50*50 | 1500 | 51 | |||
| 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 60.8 | 100 |
| 5.6 | 50*50 | 1300 | 55.8 | |||
| 5.8 | 50*100 | 1000 | 53.8 | |||
| 5.6 | 50*100 | 800 | 48.4 | |||
| 6.3 | 50*50 | 2000 | 68 | |||
| Remark: the size, wire diameter, mesh gauge can be customized as your design. | ||||||

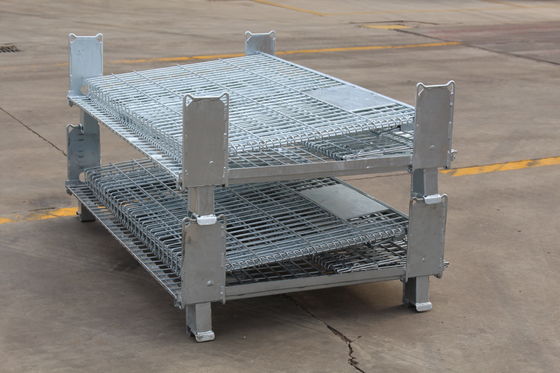

Our collapsible metal pallets & steel box pallet allow for the ease of transportation of goods through its complex bespoke design. The pallet feet are designed with open cups, allowing for stacking when both upright and folded.
Our collapsible metal pallets are available with:
Our designs range from the most simple solutions to the highest of complexity dependant on your specifications.
Fork guides and lifting eyes provide a viable solution when looking for the ease of transportation. Fork guides can be produced partially of full and can be added to as many sides as required.
All of our products are available in any of colour you may require, be that a standard RAL or mixed to your specifications. We also offer our products galvanised or zinc coated.
Being a bespoke manufacturer we can ensure that each pallet is produced to hold whatever load you may require, load testing is available on all products.

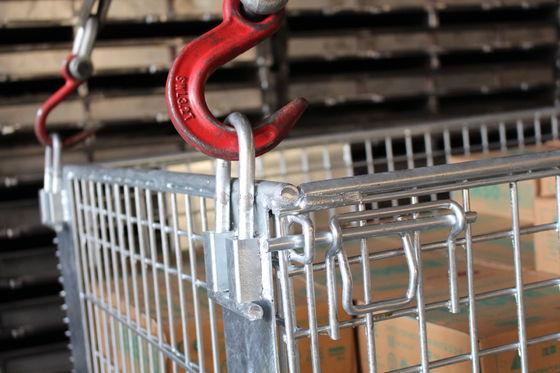

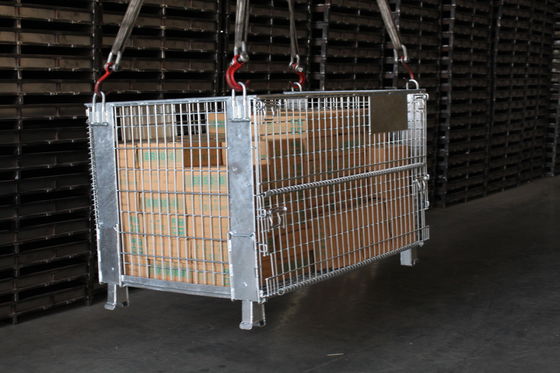

Four Rings
We design four rings for operate by 4 top to Hoist up.
