Warehouse 800KGS Capacity Double Faced Wire Mesh Box Pallet
2000pcs
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: QINGDAO
Brand Name: FIRST
Certification: ISO9001
Model Number: 1613(W)*1034(D)*1085(H)mm
High Light:

800KGS Wire Mesh Box Pallet

,

800kgs mesh pallet cages

,

Warehouse 800KGS Wire Mesh Box

Payment & Shipping Terms
Packaging Details: Package Belt
Delivery Time: 12~20 workdays
Payment Terms: L/C, T/T
Supply Ability: 2000PCS/Month
Specifications
Entry Type: 4-way
Type: Steel Stackable/Foldable Pallet
Style: Double Faced
Material: Steel Q235
Surface Treatment: Power Coated
Color: Any Color,Customized
Usage: Transportation,Logistics
Size: Can Customize Any Size
Loading Capacity: 800KGS
Feature: 4 Way Access
Logo: Customer Logo
Product Description

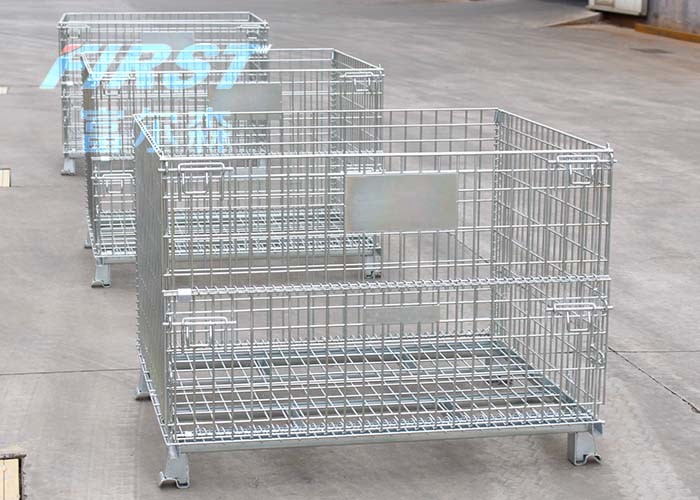

Steel Box Pallet used in warehouse for loading metal parts or plastic parts



Regular Sizes

Regular models of wire container
Item No. Specification Wire diameter Mesh gauge Load capacity Self-weight Feet height
External size (L*W*H)(mm) Internal size (L*W*H)(mm) (mm) (mm) (kg) (kg)±2% (mm)
A1-800 800*600*640 750*550*500 5.8 50*50 800 29 100
A1-700 5.6 50*50 700 27.8
A1-600 5.3 50*50 600 23
A1-400 4.8 50*50 400 20.6
A2-600 5.8 50*100 600 25
A3-1000 6.3 50*50 1000 32
B1-1200 1000*800*840 950*750*700 5.8 50*50 1200 44.8 100
B1-1000 5.6 50*50 1000 42.8
B1-800 5.3 50*50 800 35.2
B1-600 4.8 50*50 600 30.8
B2-1000 5.8 50*100 1000 39
B3-1500 6.3 50*50 1500 51
C1-1500 1200*1000*890 1150*950*750 5.8 50*50 1500 60.8 100
C1-1300 5.6 50*50 1300 55.8
C2-1000 5.8 50*100 1000 53.8
C2-800 5.6 50*100 800 48.4
C3-2000 6.3 50*50 2000 68
Remark: the size, wire diameter, mesh gauge can be customized as your design.



Our collapsible metal pallets & steel box pallet allow for the ease of transportation of goods through its complex bespoke design. The pallet feet are designed with open cups, allowing for stacking when both upright and folded.

Our collapsible metal pallets are available with:

Drop sides and half drop sides

Our designs range from the most simple solutions to the highest of complexity dependant on your specifications.

Fork guides and lifting eyes

Fork guides and lifting eyes provide a viable solution when looking for the ease of transportation. Fork guides can be produced partially of full and can be added to as many sides as required.

Any colour or galvanised upon request

All of our products are available in any of colour you may require, be that a standard RAL or mixed to your specifications. We also offer our products galvanised or zinc coated.

Load testing

Being a bespoke manufacturer we can ensure that each pallet is produced to hold whatever load you may require, load testing is available on all products.



Four Rings

We design four rings for operate by 4 top to Hoist up.
